CDA series Desktop CO2 Laser Marking Machine
  • DAVI CO2 Laser Source, the best laser source made-in-China
  • Stability 60% higher than other brand lasers.
  • life time 30%-80% longer than other brand lasers
  • Original EZCAD from BJJCZ, price 3 times higher than copied marking card.
  • Less power consumption, lower than 800W in total.
  • Small size, air-cooled, easy to carry and transport.
  • High electro-optical conversion rate, maintenance free.
  • High stability, easy to operate.
  • Multiple Marking form: Flying Marking, Line Printer, Rotating Marking. Multistage Marking.
  • Deep carved marking. Black marks on Al material
  • Advanced high speed galvanometer scanner to increase marking speed by more than 30%;
  • A varity of accessories can be chose like rotate fixture, foot switch etc
Model CDA15 CDA20 CDA30 CDA60 CDA100
Laser Power (W) 15 20 30 60 100
Laser Type CO2 Laser
Certificate ISO,CE,FDA
Marking Field 160 mm / 110X110 mm (Standard)
210 mm / 150X150 mm (Optional)
254 mm / 175X175 mm (Optional)
330 mm / 200X200 mm (Optional)
430 mm / 300X300 mm (Optional)
Laser Source Brand DAVI (Standard)
COHERENT (Optional)
SYNRAD (Optional)
JR LASER (Optional)
QICHEN LASER (Optional)
Operating Voltage 110V 50/60 Hz
220V 50/60 Hz
Wavelength 10600 nm (Standard)
10200 nm (Optional)
9300 nm (Optional)
Supported OS Windows XP / 7 / 8 / 10
Marking Software EzCAD2 (Standard)
SeaCAD (Optional)
Supported Format PLT, DXF, AI, SDT, BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF
Cooling Air Cooling (Standard)
Water Cooling (Optional)
Power Consumption ≤500W ≤500W ≤500W ≤600W ≤800W
Positioning Two Red Light

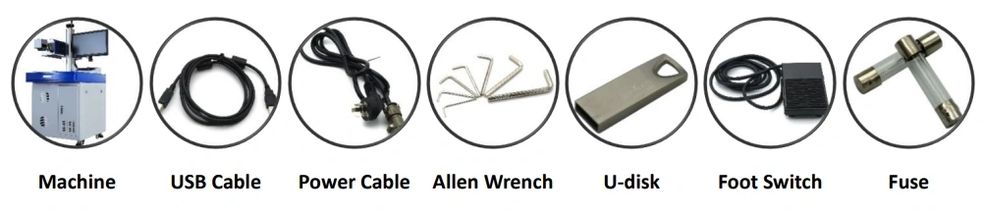

Accessories Foot switch , ruler , wrenches, cables

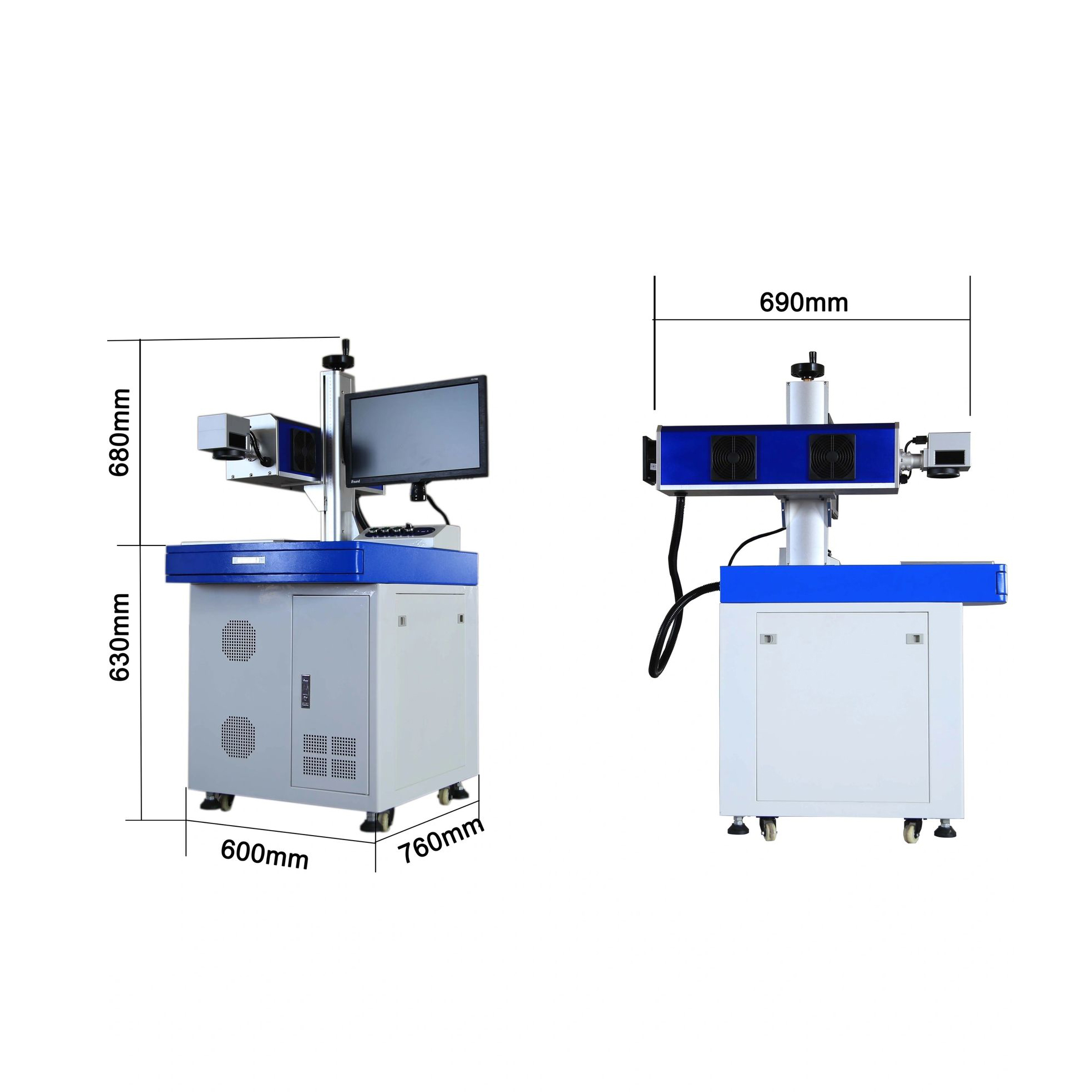

Packing Dimension 1100X1200X700 mm
Gross Weight 150 KG
Package Plywood Case
After-sell Services Warranty for 2 years.
Maintenance free of charge for 2 years .
We will provide the consumable parts at an agency price.
24 hours online service, free technical support.

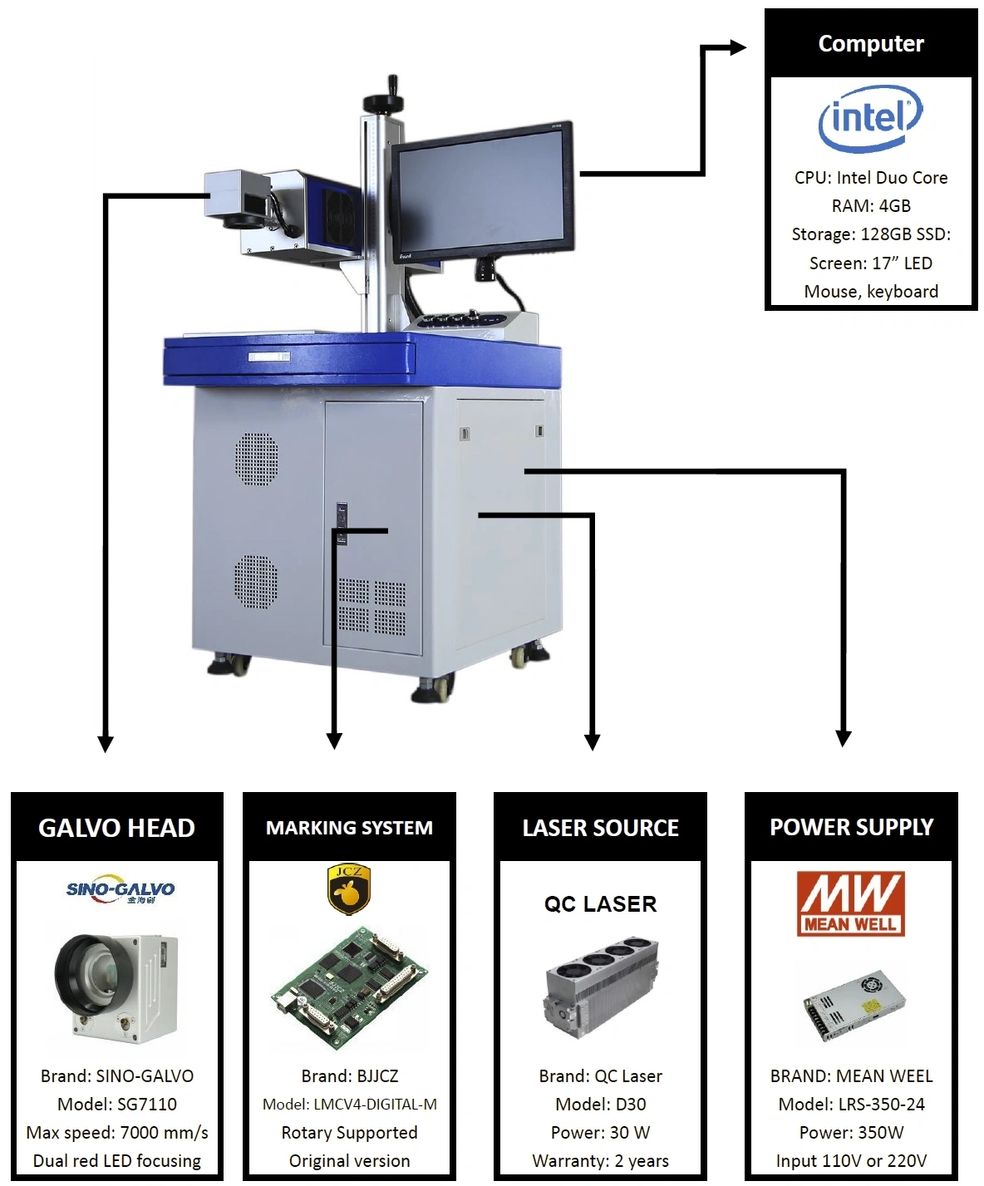

LASER SOURCE

CONTROL CARD

GALVO HEAD

·Echnical characteristics

·Highly laser output

·High single-pulse energy

·High marking efficiency

·Short pulse setup time

·High reliability

·Maintenance-free

·Stable performance

·Rotary marking

·Auto CAD,CorelDRAW

·Easy to operate

·PLT, DXF, AI, SDT, BMP, JPG, JPEG, GIF, TGA, PNG, TIF, TIFF

·High speed

·High stability

·High Precision

·Power efficiency

·Two red pointer

F-THETA LENS

COMPUTER

RED POINTER

·Stable performance

·Accurate beam position

·High precision

·Low-loss coatings

·Smaller spot size

·Intel duo core CPU

·2GB RAM

·SSD driver

·17 inch HD screen

·64 bit Windows

·Wireless keyboard mouse

·5mW

·Long lifespan

·Low-loss coating

Sample / Material Can be Processed

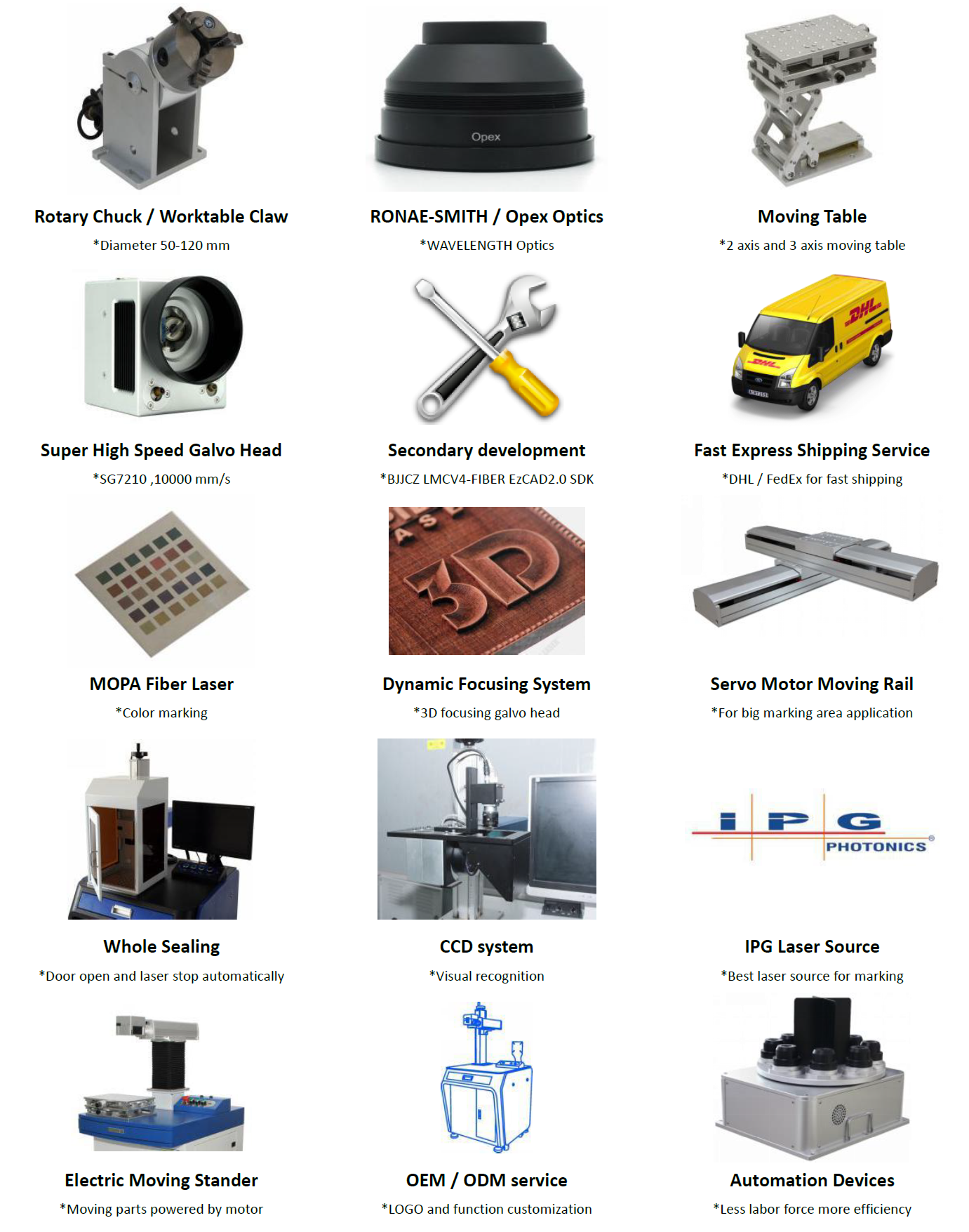

Upgrade Options

Electric Moving Stander

*Moving parts powered by motor

Rotary Chuck / Worktable Claw

*Diameter 50-120 mm

MOPA Fiber Laser

*Color marking

Whole Sealing

*Door open and laser stop automatically

Super High Speed Galvo Head

*SG7210 ,10000 mm/s

OEM / ODM service

*LOGO and function customization

RONAE-SMITH / Opex Optics

*WAVELENGTH Optics

Dynamic Focusing System

*3D focusing galvo head

CCD system

*Visual recognition

Secondary development

*BJJCZ LMCV4-FIBER EzCAD2.0 SDK

Automation Devices

*Less labor force more efficiency

Moving Table

*2 axis and 3 axis moving table

Servo Motor Moving Rail

*For big marking area application

SYNRAD Laser Source

*Best laser source for marking

Fast Express Shipping Service

*DHL / FedEx for fast shipping
